1
Layout the Liner
Layout the sections of liner to be seamed. Overlap ends 6" - 12".
2
Clean the Seam Area
Lift the top liner. Use gasoline and thoroughly clean the seam area.Warning: Use in a well-ventilated area.
3
Mark the Seam Area
With the top liner down, use a crayon or lightly score with scissors the seam area on the bottom liner. Raise the top liner for priming.
4
Prime the Seam Area
Prime both liners. On the bottom liner, prime 1/4" above the mark, approximately 6" - 8" wide. Prime a matching area on the top liner.
5
Apply 3" Double Stick
Apply 3" double sided tape to the bottom liner, pressure rolling as you go to eliminate air bubbles or wrinkles.
6
Smooth the Seam
With the double stick paper still on, replace the top liner and pressure roll the seam.
7
Seal the Seam
Slit the tape in the center. Overlap liners and carefully remove the paper, pulling at a 45 degree angle, one side at a time.Warning: Take your time - proper technique prevents air pockets.
8
Apply 6" Single Stick
Prime an area 6" wide over the exposed edge of the seam. Apply 6" tape over primer.
9
Roll and Seal
Thoroughly pressure roll the 6" tape and generously apply lap sealant along both edges.
10
Allow to Dry
Allow the seam to dry thoroughly before contact with water.Warning: Drying time varies - when in doubt, wait longer.

Lifeguard EPDM Pond Liner

Lifeguard EPDM

Pond Liner Calculator

Find the perfect EPDM liner size for your pond

Select Liner Thickness
Loading products
ft
ft
ft
ft
ft
ft
ft
ft
Your Pond Calculations
Surface Area
0
sq ft
Water Volume
0
gallons
Liner Size
0×0
ft
Max Koi
0
fish
Min Pump
0
GPH
Acre Feet
0


PREMIUM LINER FOR KOI PONDS, WATER GARDENS AND WATERFALLS

When choosing the pond liner for your project, remember that it is the foundation for your Koi Pond, Water Garden, or Waterfall. From residential backyard ponds to commercial water features, Anjon Manufacturing's EPDM LifeGuard Pond Liner® is the quality choice for installers and water feature owners, it's tested and certified to be fish and wildlife safe by Guardian Systems, Inc!

Both 45 Mil and 60 Mil EPDM Pond Liners offer outstanding quality and flexibility. You will gain a fraction more thickness and durability with 60 Mil EPDM, however for a lesser cost, 45 Mil is close second in overall quality and value.

  • 45-Mil EPDM is recommended for ponds & waterfall applications
  • 60-Mil EPDM is recommended in applications with large boulders & commercial projects
  • 25 Year Warranty
  • Remains flexible in extreme temperatures
  • Contains no plasticizers that can crack & split
  • Readily accepts pipe and hose penetrations
  • Certified fish & wildlife safe

LifeGuard Specification Sheet

LifeGuard MSDS

Liner Safety Test

The warranty for Anjon Manufacturing's 45-Mil EPDM LifeGuard Pond Liner is UNSURPASSED in today's market! LifeGuard Pond Liner® comes with a standard 25-Year Manufacturer Warranty that's applied when installed without UnderGuard Underlayment™ Nonwoven Geotextile. LifeGuard Pond Liner is warrantied for LIFE when installed with UnderGuard Underlayment™ Nonwoven Geotextile!

Show 15 products per page

  • LifeGuard 15 ft. x 15 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 15 ft. x 15 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 15 ft. x 15 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 15 ft. x 15 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $261.36 $297.00
    Add to Cart
  • LifeGuard 15 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 15 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 15 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 15 ft. x 20 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $348.48 $396.00
    Add to Cart
  • LifeGuard 20 ft. x 25 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 20 ft. x 25 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 20 ft. x 25 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 20 ft. x 25 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $580.80 $660.00
    Add to Cart
  • LifeGuard 5 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 5 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 5 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 5 ft. x 50 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $290.40 $330.00
    Add to Cart
  • LifeGuard 10 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 10 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 10 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 10 ft. x 10 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $116.16 $132.00
    Add to Cart
  • LifeGuard 5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 5 ft. x 10 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $66.88 $76.00
    Add to Cart
  • LifeGuard 20 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 20 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 20 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 20 ft. x 20 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $464.64 $528.00
    Add to Cart
  • LifeGuard 20 ft. x 30 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 20 ft. x 30 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 20 ft. x 30 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 20 ft. x 30 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $762.96 $867.00
    Add to Cart
  • LifeGuard 7.5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 7.5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 7.5 ft. x 10 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 7.5 ft. x 10 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds,...

    $95.92 $109.00
    Add to Cart
  • LifeGuard 5 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 5 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 5 ft. x 20 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 5 ft. x 20 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $116.16 $132.00
    Add to Cart

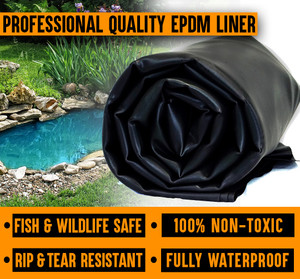

  • LifeGuard 5 ft. x 100 ft. EPDM 60-Mil Rubber Pond Liner LifeGuard 5 ft. x 100 ft. EPDM 60-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 5 ft. x 100 ft. EPDM 60-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 60-mil EPDM rubber, this 5 ft. x 100 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $638.00 $725.00
    Add to Cart
  • LifeGuard 10 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner LifeGuard 10 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner

    LIFEGUARD POND LINER

    LifeGuard 10 ft. x 50 ft. EPDM 45-Mil Rubber Pond Liner

    Built to Last – The LifeGuard EPDM Pond Liner is designed for long-lasting durability and flexibility. Constructed from 45-mil EPDM rubber, this 10 ft. x 50 ft. liner resists punctures, UV rays, and temperature extremes—perfect for koi ponds, waterfalls,...

    $580.80 $660.00
    Add to Cart
